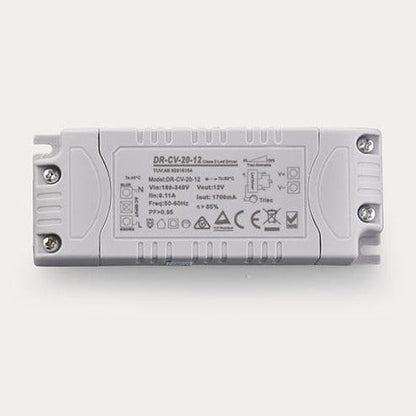

12 Volt DC 20W Dimmable Constant Voltage LED driver
DR-CV-20
20 watt 12 Volt DC dimmable constant voltage LED driver for powering our 12 Volt LED Strip and our 12 Volt LED Filament light bulbs compatible with 1-10V dimmer.
Technical Details
| Product Number | DR-CV-20 |
| Primary Voltage | 180-240 volts |
| Frequency | 50-60Hz |
| Input Current | 0.09A |
| Output Voltage | 12 volts |
| Output Current | 1700mA |
| Power Factor | >0.95 |
| Operating Temperature | 30~45 °C |
| IP Rating | IP20 |
| Dimensions | 94 x 36 x 17 mm |
| Certification | C-tick, SAA, TUV, CE |
| Warranty | 60 months |
