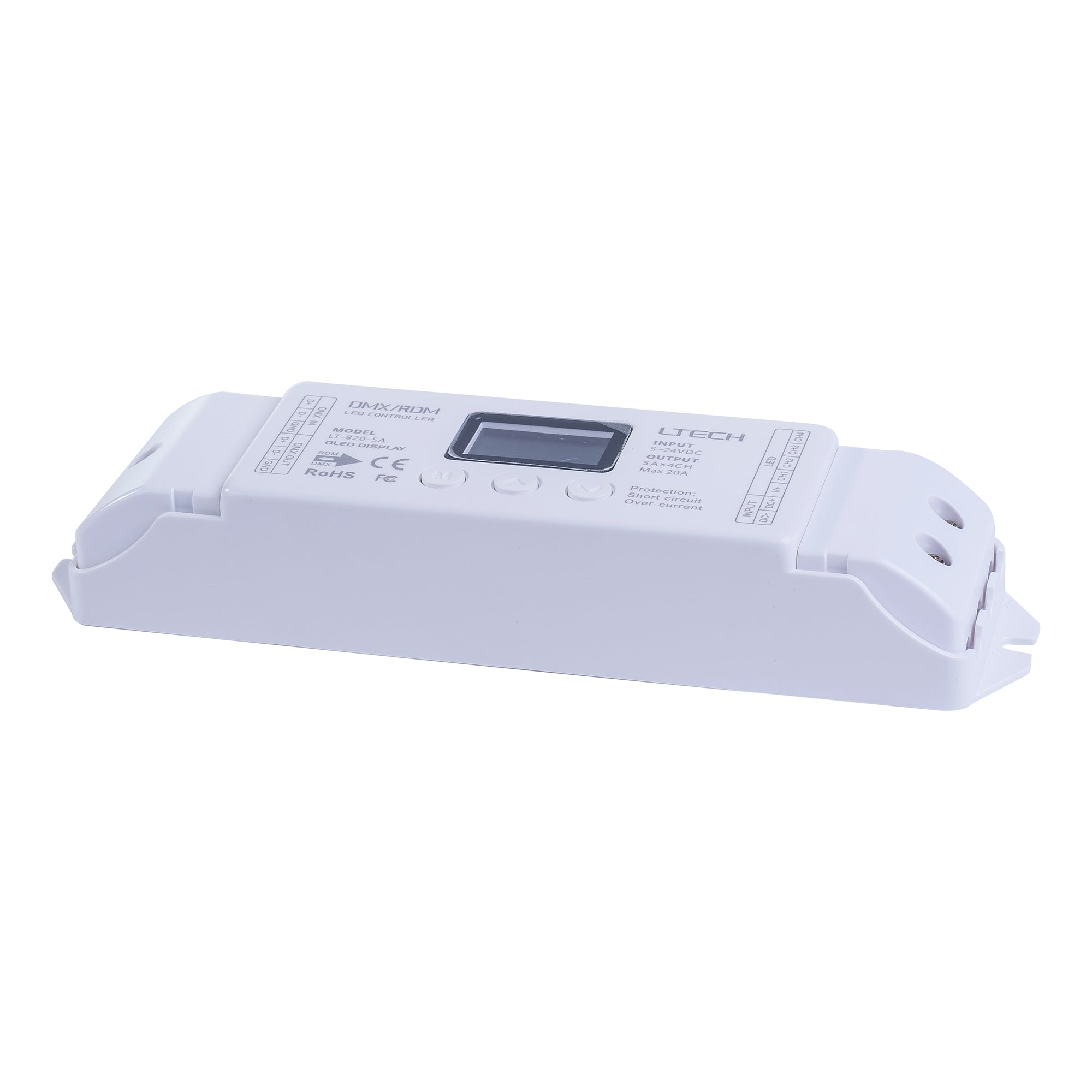

HV9109-LT-820-5A - DMX RGBC or RGBW LED Strip Controller
HV9109-LT-820-5A
- DMX LED strip controller
- For use with RGBC or RGBW LED strip
- Input signal: DMX512
- Input voltage: 12v DC or 24v DC
- Max Load Current: 5A X 4 Channel Max 20A
- Max Output Power: 12v DC 240w / 24v DC 480w
- Dimming Range: 0-100%
- IP rating: IP20
- 3 Years replacement warranty (Items ordered after 01-01-2022)
